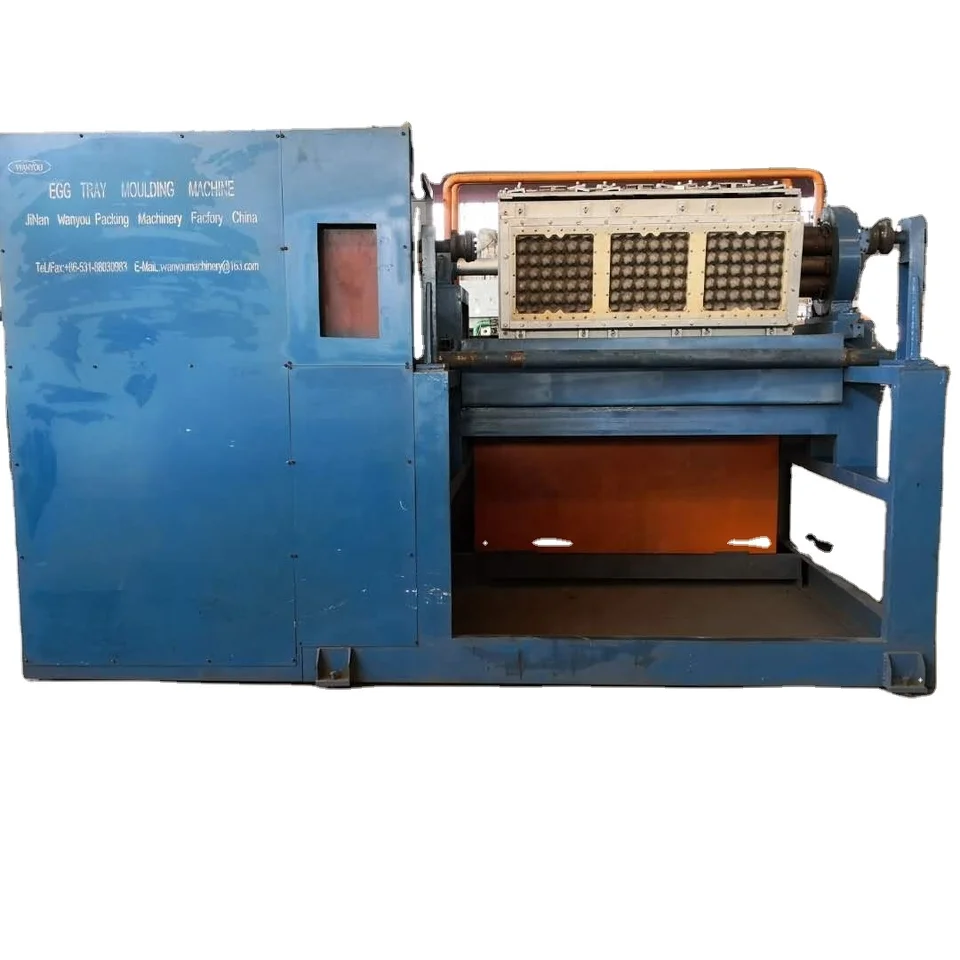

Recycled Waste Paper Pulp Molded Egg Tray Making Machine Egg Carton
Machine Small and Large Capacity
Description of Egg Tray Machine:
Pulping System
1. Put the raw material and water into the hydraulic pulper, you
will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry
pool.
3. The pulp pond beater will mix the pulp concentration.
4. The 2nd pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to absorb the pulp to the molding mold,
absorb the pulp to the molding mold through the suction of the
vacuum system to absorb the excess water into the gas-water
separation tank, and then pump the water to the tank for storage.
2. The molding mold absorbs the pulp and then forms it. and then
the transfer mold takes out the finished product and sends it to
the drying tray inside the dryer oven.
Drying System
1.Heat source: natural gas, diesel, liquefied petroleum gas and
other combustion liquids and gases.The transmission mode adopts
industrial transmission chain to drive the net plate transmission,
which runs in the drying line.
Small Capacity egg tray machine model technical data
| Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper |
| Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g |
| Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour |
| Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour |
| Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h |
| Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers |
| Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW |
| With dryer | 30KW | 45KW | 60KW | 65KW |
| Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² |
| With dryer | More than200 M² | More than 240 M² | More than300M² | More than 320 M² |
| Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*1+20ft*1 | 40ft*2+20ft*1 | 40ft*2+20ft*1 | 40ft*3 |
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size
300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted
according to actual size of client's plant.
3.The above specification is for reference only, due to continuous
technology development, data will be updated from time to time.
4.Paper Pulp Molding Machine are non-standard equipment, we are
able to provide customized solution according to specific
requirements from customer.
5.Welcome to contact us anytime, our professional team will provide
more effective help and supports for you. |
|
Technical data of Large Capacity Rotary forming TypeEgg Tray
Machine:
| Egg Tray Mold Quantity | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper |
| Egg tray Capacity(pcs/hour) | 2000 | 2500 | 3000 | 4000 |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 |
| Waste paper consumption | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour |
| Water Consumption | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h |
| Natural Gas Consumption of Dryer | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h |
| Boiler model (natural gas fuel Kcal) | 800*103 | 1000*103 | 1200*103 | 1500*103 |
| Worker requirement | 5-7workers | 5-7workers | 8-10workers | 8-10workers |
| Power Requirement | Without dryer | 70KW | 80KW | 100KW | 100KW |
| With dryer | 100KW | 120KW | 130KW | 150KW |
| Area of workshop | Without dryer | More than
200 M² | More than 200 M² | More than 250 M² | More than 250 M² |
| With dryer | More than 400M²
Dryer18M | More than 400M²
Dryer20M | More than 520M² dryer30M | More than 520M²
Dryer32M |
| Container Requirement | Without dryer | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 |
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size
300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted
according to actual size of client's plant.
3. The above specification is for reference only, due to continuous
technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able
to provide customized solution according to specific requirements
from customer.
5. Welcome to contact us anytime, our professional team will
provide more effective help and supports for you. |
| Egg Tray Mold Quantity | 12pcs(3pcs*4 faces) |
| Raw material | Waste paper |
| Egg tray Capacity | 2000pcs/hour |
| Net weight per piece (gram) | 70g-75g |
| Waste paper consumption | 135kg / hour |
| Water Consumption | 0.5ton / hour |
| Natural Gas Consumption of Dryer | 60cbm/h |
| Worker requirement | 5-7workers |
| Machine Length | 8m-38m |
| Machine weight | 8-32tons |
| Power Requirement | Without dryer | 70KW |
| Area of workshop | Without dryer | More than 200 M² |
| Container Requirement | Without dryer | 40ft*1 |
| Remarks: 1. The egg tray Capacity calculated base on 30-packed egg
tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for
reference only and could be adjusted according to actual size of
client’s plant. |
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg,
15-egg, 18-egg and etc)This production line is suitable for the
following products:
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and
2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn’t
change frequently) pulp molding products with large quantity.
Egg tray machine features:
1. controlled by computer, no needs infrastructure construction.
2. Egg tray forming molds easy changed, and it’s very easy to
change any moulds to the machine.
3. England technology, and spare parts is very famous brand from
Germany, Taiwan…
4. with 2 years warranty.
5. The installation of the whole line is easy.
Drying system can be choose:
(1) Natural drying method: The product is dried directly by weather
and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose
natural gas, diesel, coal, dry wood,A heat source such as liquefied
petroleum gas.
(3) New multi-layer drying line: 4-layer metal drying line can save
more than 30% energy compared to transmission drying. The main heat
source is clean energy such as natural gas, diesel oil, liquefied
petroleum gas and methanol.
Welcome for more information.
