    Wanyou waste paper pulp egg tray carton making machine production line

    Ask Lasest Price
    Brand Name : Wanyou
    Model Number : WY-D
    Certification : CE
    Price : 5500usd-9800usd
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 1 set per month
    Delivery Time : 65 working days
    • Product Details
    • Company Profile

    Wanyou waste paper pulp egg tray carton making machine production line

    Wanyou waste paper pulp egg tray carton production line


    Technical parameters of paper pulp production line:

    China Recyclable fully Pulp Molding Machine /roller egg tray making machine Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays.

    Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production.

    It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine.

    It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc.


    1,

    Egg tray mould quantity


    1pcs2pcs3pcs4pcs
    2,

    Raw material


    Waste paperWaste paperWaste paperWaste paper
    3,

    Output for egg tray


    350pcs/hour700pcs/hour1000pcs/hour1300pcs/hour
    4,

    Net weight per piece (gram)


    70g-75g70g-75g70g-75g70g-75g
    5,The volume of waste paper consumed0.025ton / hour0.06ton / hour0.1ton / hour0.13ton / hour
    6,The volume of water consumed0.05ton / hour0.15ton / hour0.2ton / hour
    7,

    Operators number


    2-3workers3-4workers4-6workers4-6workers
    8,Area of workshopMore than 200M²More than 240M²More than 240M²More than 240M²
    9,Capacity of power25KW40KW50KW60KW

    Description of paper pulp production :


    1. pulping system:including the hydrapulper,pump,disk mill,water tank,pulp tank,mixer,etc..to make the waste paper into pulp.

    2. forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

    3. drying system: including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.

    the raw material is any wastepaper(without plastic) and water.

    The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

    Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.

    If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.

    Our machine can be designed to make different products at same time by one Working Table (with 2Molds or even 3 molds)

    Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)This production line is suitable for the following products.

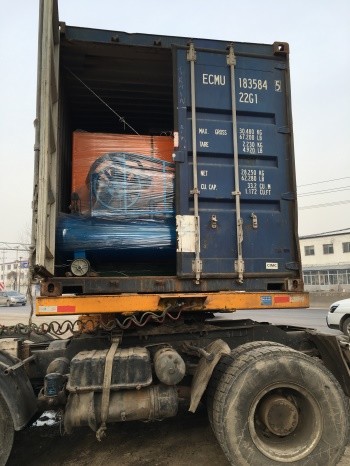

    Packing and shipping

    Wanyou waste paper pulp egg tray carton making machine production lineWanyou waste paper pulp egg tray carton making machine production line


    FAQ

    Our production line has Fully Automatic and Semi Automatic two types , both have computer control system .
    1. What is Semi Automatic type ?
    If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
    2. What is Fully Automat type ?
    Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
    Of course, the price and the required work space would have big difference from the semi-automatic type.
    3. Quality
    --- Our machines use UK Technical and part of the components are Germany-made (ex: Ball valve) .
    -- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .
    -- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
    --- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
    --- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
    4 .What capacity per hour do you offer ?
    Our machines’ capacity is from 350pcs/hr to 6000pcs/hr.
    5.Do your products come with a warranty ?
    Yes , we have 2 years warranty according the international practice.
    6.Can I customize this kind of machine from your factory?
    Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.

    Wanyou waste paper pulp egg tray carton making machine production line
