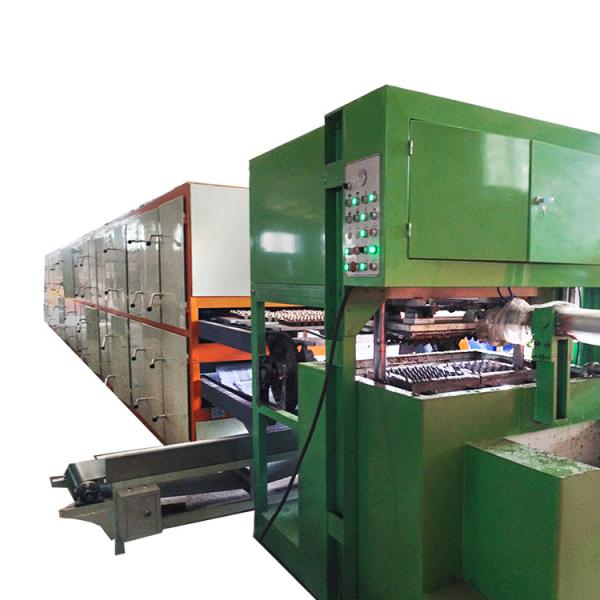

6000pcs per hour Recycled waste paper fruit tray making machine

This machine is composed of the following sections:

1. Egg Tray Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

2. Egg Tray Molding Forming System :

The Egg Tray Molding Forming System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

4. Egg Tray Automatic Stacking Machine:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .

Condition: New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided: Engineers available to service machinery overseas

Capacity: 6000pcs/h

Color: As customer needs

Frequency: 50Hz-60Hz

Application: egg tray,fruit tray,bottle tray

Workshop required: 150-300㎡

Worker required: 10-12workers

Fuel: Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine

Many capacity egg tray machines we offered:

Payment and delivery

Samples of apple tray making machine:

our factory:

Welcome to contact us!

  Jinan Wanyou Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.Our factory established in 2008, locates in Jinan City, Shandong Province, China.

We are professional manufacturer and supplier for Paper Egg Tray Machine, with more than10 years' experience in the machine design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national paper egg tray machine manufacturing license in China.

We have been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.we control the quality of the products strictly.

We absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant,

.

Our products have passed the CE certification. Now we are producing different output paper egg tray,paper fruit tray,paper bottle tray and other industrial package trays exported to over 50 countries,such as Algeria,Tunisia,Argentina,Vietnam,Russia, Uzbekistan,Nigeria,Taiwan and so on.

Now, we offer products are as below:

Various paper egg tray production lines/pulp moulding machine: such as paper egg tray machine,paper egg box machine,paper fruit tray production line,pulp molding industrial package machinery, pulp molding pallet equipment.We also provide various aluminium mould/tooling for above products.

What we did and what we are doing is to offer the best egg tray production line, to turning waste into treasure contribute to the development of the environmental protection. We sincerely hope that we can establish long term and friendly business relationship with you.
