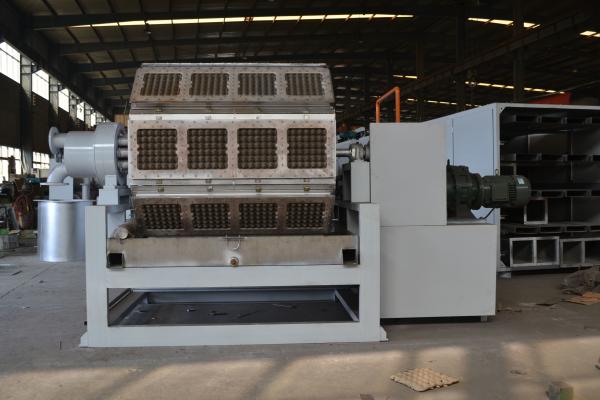

    Professional Paper Pulp Molding Equipment Rotary Forming Paper Egg Tray Production

    Ask Lasest Price
    Brand Name : Wanyou
    Model Number : ZSJ-2500
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1 sets per month
    Delivery Time : 25-80 working days after get deposit payment
    • Product Details
    • Company Profile

    Professional Paper Pulp Molding Equipment Rotary Forming Paper Egg Tray Production

    Professional Paper Pulp Molding Equipment Rotary Forming Paper Egg Tray Production Line


    Machine Introduction:


    Egg Tray Production Line Description:

    ---Using high precision reducer servo motor to form and transfer the trays, ensuring fast and smooth operation.

    ---Using absolute encoder to realize accurate correction/calibration.

    ---The use of high quality casting static and dynamic ring structure is more suitable for product drying technology.


    Egg tray machine Pulp Molding Machine is composed of the following sections:


    Pulping SystemTurn waste paper, such as old newspapers, magazines, cartons, into a certain concentration pulp through pulping, screening, or adding chemical additives , for forming of molding machines.

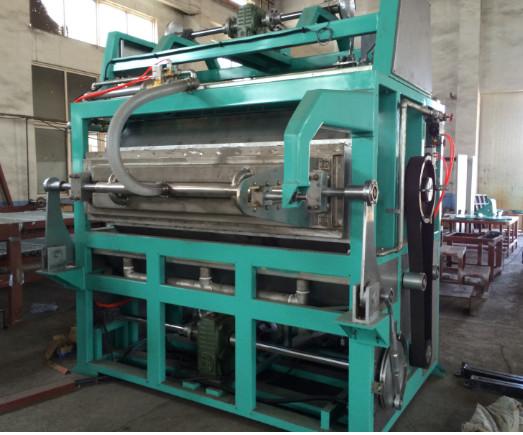

    Forming SystemAttaching the pulp onto the specially made forming mold evenly through vacuum effect to make it into wet trays and then deliver it to drying system.
    Drying SystemUsing heat source like Gas, Diesel, Steam, Conduction oil, coal, Wood to dry the wet trays after forming.
    Stacking & Packing System

    Count the number of dried trays, separate them and pack them for automatic packaging.

    Vacuum SystemOffer vacuum for forming product
    Air Compressor SystemSupply compressed air for transferring product
    High Pressure Water System

    Supply high pressure water for washing molds of forming machine.

    Egg Tray Machine Advantages:


    1. controlled by computer, no needs any construction.

    ​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

    ​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

    ​ 4. with 2 years warranty.

    ​ 5. The installation of the whole line is easy.


    Many Types Machine to chose


    Egg Tray Mold Quantity1pcs2pcs3pcs4pcs12pcs(3pcs*4)18pcs(3*6)24pcs(3*8)32pcs(4*8)
    Raw materialWaste paperWaste paperWaste paperWaste paperWaste paperWaste paperWaste paperWaste paper
    Egg tray Capacity350pcs/hour700pcs/hour1000pcs/hour1300pcs/hour1500-1800pcs/hour2000-2200pcs/h2500pcs/h3000pcs/hour
    Net weight per piece (gram)70g-75g70g-75g70g-75g70g-75g70g-75g70g-75g70g-75g70g-75g
    Waste paper consumption0.025ton / hour0.06ton / hour0.1ton / hour0.13ton / hour135kg/ hour150kg/h188kg/h225kg / hour
    Water Consumption0.05ton / hour0.1ton/hour0.15ton / hour0.2ton / hour0.5ton / hour0.55ton/h0.6ton/h0.65ton / h
    Natural Gas Consumption of Dryer12cbm/h25cbm/h35cbm/h50cbm/h60cbm/h60cbm/h80cbm/h80cbm/h
    Worker requirement2-3workers3-4workers4-6workers4-6workers5-7workers5-7workers8-10workers8-10workers
    Power RequirementWithout dryer20KW30KW40KW45KW70KW70KW100KW100KW
    With dryer30KW45KW60KW65KW80KW80KW130KW150KW
    Area of workshopWithout dryerMore than100M²More than 100 M²More than 120 M²More than 150 M²More than 200 M²More than 200 M²More than 250 M²More than 250 M²
    With dryer

    More than200 M²

    Dryer-12M

    More than 240 M²,dryer-18M

    More than300M²

    Dryer-18M

    More than 320 M²,dryer-24MMore than 400M²,dryer30MMore than 400M²;dryer30MMore than 520M² dryer36MMore than 520M²,dryer40M
    Container RequirementWithout dryer20ft*120ft*140ft*140ft*140ft*140ft*140ft*140ft*1
    With dryer40ft*240ft*2+20ft*140ft*340ft*340ft*440ft*440ft*540ft*5
    Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

    Payment and delivery:


    Trade termsFOB Qingdao or EXW Factory
    Delivery timeAbout 80 working days after receiving the deposit.
    Payment termBY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
    Time of paymentWhen the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
    Warranty timeTwo years after the Egg tray machine received.
    TERMS OF DELIVERYFOB Qingdao Port, China
    PackageIn container
    CertificationCE

    Installation
    1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )
    Our Machine Advantages:
    1. Controlled by automatic computer soft ware
    2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
    3. Some parts are Germany brand or other famous brand
    4. Our egg tray machine can make different trays at same time by using different moulds
    5. Besides egg tray, fruit trays, our machine also can produce industrial package
    6. All installation and debugging work will be done before shipment.
    7. 20 years' experience on egg tray machine
    8. 2 years warranty time

    Egg Tray Machine end products includes:

    The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.


    Welcome to contact us!
