    Full Automatic Paper Pulp Moulding Machine Paper Egg Tray Machine

    Ask Lasest Price
    Brand Name : JUNLIANG
    Model Number : WY-D
    Certification : CE
    Price : USD 21000-35000
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Full Automatic Paper Pulp Moulding Machine Paper Egg Tray Machine

    Full Automatic Paper Pulp Moulding Machine Paper Egg Tray Machine


    Pulp Moulding production line, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying and shaping to become finished products. Pulp Moulding Line makes use of recycled water and does not lead to water or air pollution.Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.

    Full Automatic Paper Pulp Moulding Machine Paper Egg Tray Machine

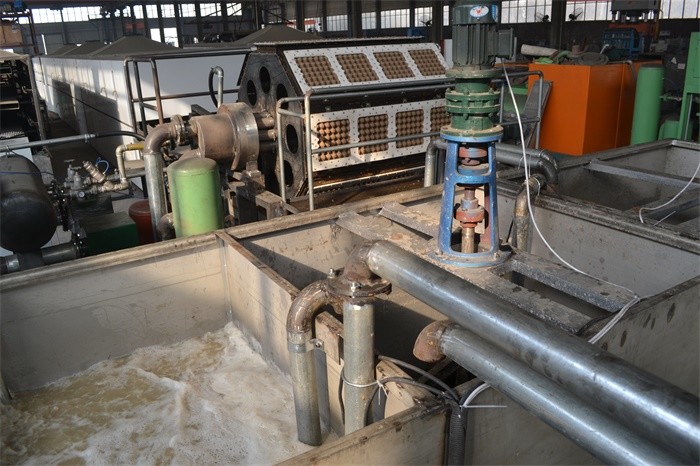

    Pulping System
    Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on. which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp.
    Full Automatic Paper Pulp Moulding Machine Paper Egg Tray Machine

    2. Forming system :

    The vacuum pump will give the vacuum to make the forming mold absorb the pulp from the pulp tank. There is a PLC control the pulp absorb time, the finished product will be shaped on the forming mold, then the transfer mold transfer the products to the drying line, the air compressor will give the air to blow the products, then the products will be fall from the mold. The products delivery to the drying line automatic . The water will be go back to the water pool, will be recycle .

    Full Automatic Paper Pulp Moulding Machine Paper Egg Tray Machine

    3. Drying system : (can use gas, dissel, coal on the dryer)

    There are burners and blowers on the two sides of the drying line. Burner give the hot power and the blower increase it, there will be hot air mouth in the drying line also blow the hot air. The drying line is protect by the insulation board. The degree can reach 200 degree.


    Payment and delivery

    Trade termsFOB Qingdao or EXW Factory
    Delivery timeAbout 90 working days after receiving the deposit.
    Payment termBY T/T40%DEPOSIT+60%BALANCE
    Time of paymentWhen the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
    Warranty time2 years after the Egg tray machine received.
    TERMS OF DELIVERYEXW Jinan,China
    Package7*40ft In container
    CertificationCE
