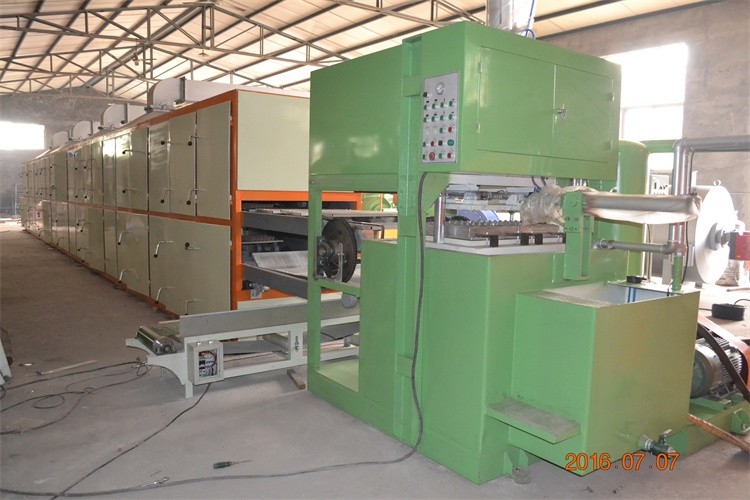

Egg Tray / Carton Machine / Fruit Tray Making Machine / Pulp
Molding Machine For Egg Tray Making
Machine Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy
to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from
Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | About 60 working days after receiving the deposit. |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment | When the deposit is paid, the machine will begin to be produced.
And the balance should be paid by the consignee (the buyer) before
the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Certification | CE |
Our Machine Advantages:
1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after
connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by
using different moulds
5. Besides egg tray, fruit trays, our machine also can produce
industrial package
6. All installation and debugging work will be done before
shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time
All paperpackage such as paper egg tray, egg carton,egg box, fruit
tray, bottle tray, cup tray, consumer product package, medical
disposable container etc.
| Technical Parameters of the Egg Tray Machine |
| pulp system | Hydra Pulper | 30KW | Effective Power:25KW,material of tank and disc:carbonized steel
,material of screen plate:stainless steel , pulping
consistency:3-4%.
|
| Mixer/Crusher | 1.5KW/h | Stainless steel shaft and impeller,Mixing diameter:1200mm,match
with pulp chest of 2 meters deepth,match with pulp chest of 2
meters deepth.not included support bracket.
|
| Vibration Screen | 3kw/h customized Some type machine donnot need this equipment | Screen area:0.9m2 including protective casing.
|
| forming system | 8 faces Rotary forming machine | 40pcs forming molds and 5 pcs transfer molds and 5 pcs press molds
| PLC control,stainless steel pulp tank,the surface of platens
covered with stainless steel,the products should be transferred to
a plate manually.The main electrical elements is Siemens brand. |
| Auto Drain System | | Match with Forming System include Air-water Separation Tank,Auto
Drain Tank,Support,Check Valve, Electromagnetic Valve, Inductor,etc |
| Control Cabinet for Forming System
| / | Control the forming machine.The main electrical elements is Germany
brand. |
| drying system | 6-layer Drying Line | 16kw/h | Effective length 100m, transfer speed adjustable. Fuel : Diesel
oil/Nature gas/LPG
|
| Control Cabinet for Drying System
| 380v/50hz 440v/60hz | Control the drying system.The main electrical elements is Taiwan
brand.
|
| Burner | | Riello Brand |
| Boiler | | China Famous Brand |
Factory Introduction
Jinan Wanyou Packing Machinery Factory is a famous packing
machinery company which has a good mix of science, industry and
trade.
It has been devoting to studying, developing, and manufacturing of
packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and
abroad, and has studied and developed ZSJ series paper pulp molding
plant, YS series paper carton automatic print fluting machine, BD
series thin cutter paper slitter and paper carton series cutter
chain.
These products are sold to many countries and areas, such as
Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria,
Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of
your company.
FAQ:
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper
etc, and easy to get
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
