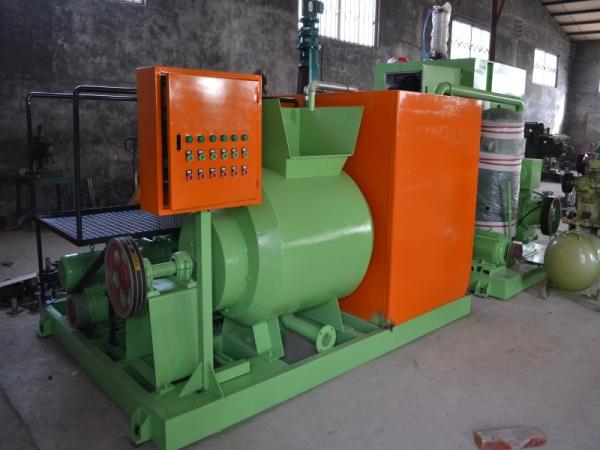

RUNLIANG New Pulp Molding Egg Tray / Apple Tray / Egg Carton
Machine Eco-friendly
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): 28kw~50kw
Dimension(L*W*H): 2300mm*1950mm*1600mm
Weight: 4 tons-20tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -1300 pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 50-180㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Semi-auto and fully automatic
Keyword: Egg tray machine
Our machine is:
1. controlled by computer, no needs any basic construction.
2. We could make all kinds of moulds for you, and it's very easy
to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from
Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
Technical data
| Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper |
| Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g |
| Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour |
| Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour |
| Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h |
| Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers |
| Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW |
| With dryer | 30KW | 45KW | 60KW | 65KW |
| Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² |
| With dryer | More than200 M² | More than 240 M² | More than300M² | More than 320 M² |
| Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*1+20ft*1 | 40ft*2+20ft*1 | 40ft*2+20ft*1 | 40ft*3 |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size
300x300mm, weight 70g~75g). 2. Workshop size is for reference only
and could be adjusted according to actual size of client’s plant. |
|
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | About 25 working days after receiving the deposit. |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE. |
| Time of payment | When the deposit is paid, the machine will begin to be produced.
And the balance should be paid by the consignee (the buyer) before
the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Certification | CE |
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELLO
Our machine can provide customer 2 years warranty, which no other
factory can supply.
Welcome to contact us.

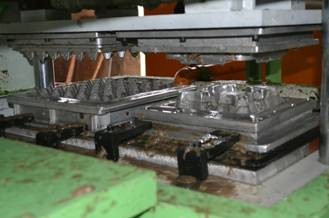

Different molds forming at one time.
