Competitive Advantage Full Automatic Rotary Paper Pulp Molding Egg
Tray Machine
The whole egg tray production line mainly includes pulping system,
molding forming system and drying system. Some assistant equipments are required as well such as air
compressor, vacuum pumps, hot pressing machine, burners, etc.;
which are all made by China Famous Brand and Germnay Brand.
The raw material of our egg tray machine is any wastepaper(without
plastic) and water.
Our machine is:
1. controlled by computer, no needs any basic construction.
2. We could make all kinds of moulds for you, and it's very easy
to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from
Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
Quick Details
Forming Type: Rotary
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Model Number: RL-DL
Finished End Product: Egg Tray, Egg carton, Fruit Tray, Cup
Carrier,Medical Care Product
Warranty: 2 Years
After-sales Service Provided:Engineers available to service
machinery overseas
Voltage: 220-440V
Motor Power Requirement:40-120Kw
Workshop needed: 100㎡--550㎡
Technical data
| Pulping Part | HydraPulper | 35kw/h | Power:25KW,material of tank and disc:carbonized steel ,material of
screen plate:stainless steel , pulping consistency:3-4%.
|
| Mixer | 1.5kw/h | Stainless steel shaft and impeller,Mixing diameter:1200mm,match
with pulp chest of 2 meters deepth,match with pulp chest of 2
meters deepth. not included support bracket.
|
| Disc Mill Pump | 7.5KW | It makes the waste paper into pulp, works continuously |

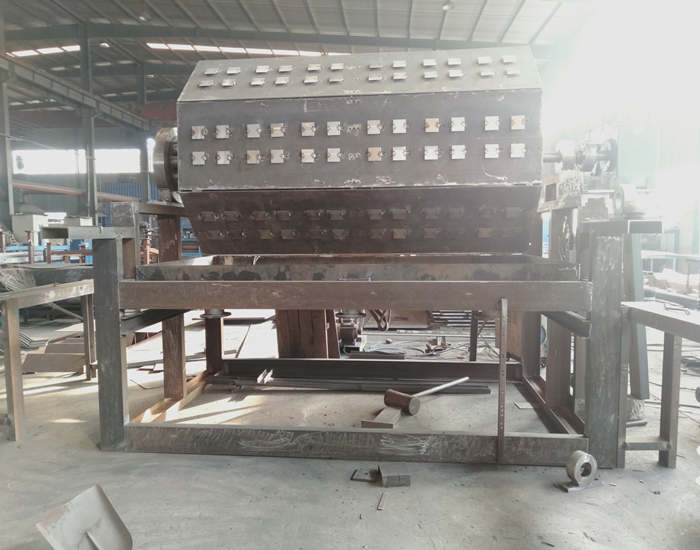

| Forming System | 8faces Rotary Forming machine | 32pcs forming molds and 4 pcs transfer molds and 4pcs press molds
| PLC control,stainless steel pulp tank,the surface of platens
covered with stainless steel,the products should be transferred to
a plate manually.The main electrical elements is Siemens brand.
|
| Auto Drain System | | Match with Forming System,include Air-water Seperation Tank,Auto
Drain Tank,Support,Check Valve,Electromagnetic Valve, Inductor,etc
|
Control Cabinet for Forming System
| | The main electrical elements is China Famous brand.
|
| Drying system | 4-layer drying oven | | Effective length 40m, transfer speed adjustable. Fuel : Diesel
oil/Nature gas/LPG
|
| Control Cabinet for Drying System | 380v/50hz 440v/60hz 220V/60HZ | Control the drying system. |
Explosion-proof device
| |
it can release the combustible gas remained in the drying line
after ignition failures, preventing the explosion of drying line
and protecting the worker and property.
|
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | About 45 working days after receiving the deposit. |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE. |
| Time of payment | When the deposit is paid, the machine will begin to be produced.
And the balance should be paid by the consignee (the buyer) before
the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Certification | CE |
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELLO
Our machine can provide customer 2 years warranty, which no other
factory can supply.
Welcome to contact us.
