Waste Paper Egg Tray Machine / Competitive Advantage Egg Tray
Machine With ABS Molds Colored Egg Tray
Waste Paper Egg Tray Machine / Competitive Advantage Egg Tray
Machine With ABS Molds Colored Egg Tray
Machine Introduction:
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water
will mix in hydrapulper ,then go to the refiner machine ,refiner
machine make the pulp more small and uniform ,then the pulp pump
absorb the pulp to the pulp pool .after the second mix in the pulp
pool ,the pulp will go to the form machine pulp tank .
2. Forming System :
The vacuum pump will offer the vacuum to make the forming mould
absorb the pulp from the pulp tank. One PLC cabinet will control
the pulp absorb time ,the finished product will be shaped on the
forming mould ,then the transfer mould transfer the products to the
drying line ,the air compressor will give the air to blow the
products ,then the products will drop down from the mould .Then the
products is delivered to the drying line automatically; the water
will go back to the water pool recycled.
3. Drying system (can use gas,dissel,coal for Boiler burner)
There are burners and blowers on the two sides of the drying line.
Burner creates the hot air and the blower increases it. There will
be hot air mouth in the drying line also blow the hot air. The
drying line is protected by the insulation board. The temperature
inside the oven can reach 200 degree.
4. Automatic counting:
After drying line ,the egg trays go to the automatic counting and
stacking system. You can preset the quantity of one pile ,such as
100pcs or 200pcs, when the quantity no is done, the counting device
will be alarmed. And the products stacked at the same time. You can
packaged them directly .
With this machine production line, investors can turn their waste
paper into Money!
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Weight: Depends
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350- 3000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 400㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg,
15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and
2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't
change frequently) pulp molding products with large quantity.
Technical parameters
| Product Name | Model | Qty(set) | Capacity |
| Egg Tray Machine | ZJM-1A | 1 | 700pcs/h |
| Area of workshop | Without dryer | More than 100㎡ |
| With dryer | More than 240㎡ |
| Capacity of power | Without dryer | 30KW |
| With dryer | 45kw |
| Machine size | Without dryer | 7m*2m*2.2m |
| With dryer | 26m*2m*2.2m |
| Size of container | Without dryer | 20ft*1 |
| With dryer | 40ft*2+20ft*1 |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | About 45 working days after receiving the deposit. |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment | When the deposit is paid, the machine will begin to be produced.
And the balance should be paid by the consignee (the buyer) before
the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Certification | CE |
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELL
Factory Introduction
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing
machinery company which has a good mix of science, industry and
trade.
It has been devoting to studying, developing, and manufacturing of
packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and
abroad, and has studied and developed ZSJ series paper pulp molding
plant, YS series paper carton automatic print fluting machine, BD
series thin cutter paper slitter and paper carton series cutter
chain.
These products are sold to many countries and areas, such as
Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria,
Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of
your company.
Welcome to contact us.

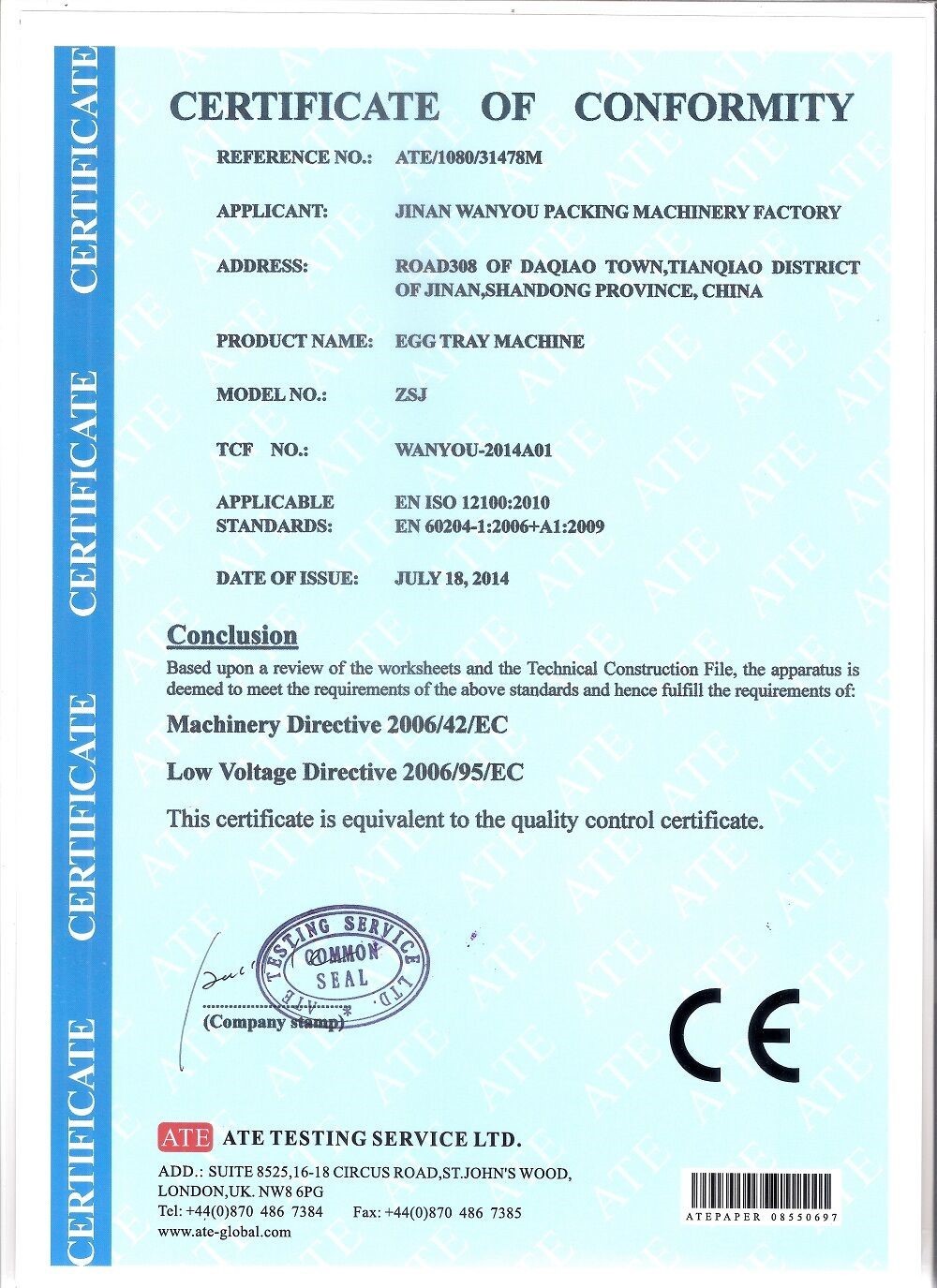

CE Certificate
Welcome to contact us!
