Rotary Egg Tray Production Line / Eco-friendly Egg Tray Carton
Machine Using Waste Paper As Raw Material
Rotary Egg Tray Production Line / Eco-friendly Egg Tray Carton
Machine Using Waste Paper As Raw Material
Machine Introduction:
The Egg Tray Molding System consists of various equipments and
Molds.
The wet forming section consists of a series of wire screen covered
wet forming dies mounted on a molding drum, and a matching set of
transfer dies mounted on a transfer mechanism.
The egg tray forming die is made up of rigid corrosive resistant
metal or ABS engineering plastic and consists of many component
parts that are drilled with small drainage holes and covered by
pre-formed stainless steel screens.
The forming die, mounted on the molding drum is rotated at a
uniform speed, immersing it in a taper flow vat containing the pulp
slurry of about 1% consistency of fibres in recycled water. A
vacuum system attracts the fibres to deposit on the forming die
screens as the suspending recycle water is drawn through the screen
and drainage holes.
When the matching transfer die comes into contact with the freshly
formed fibre product on the forming die, there is a gentle puff of
air from the forming die and a vacuum in the transfer die that
gently lifts off and transfers the delicate wet formed products
(about 75% water at this stage) onto the transfer die. And to
remove and transfer to dryer conveyor trays by an alternate gentle
air puff through the transfer dies when they are above a matching
dryer conveyor tray
With this machine production line, investors can turn their waste
paper into Money!
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg
and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't
change frequently) pulp molding products with large quantity.
Technical parameters
| Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 32pcs(4*8) |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper |
| Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 1800pcs/hour | 3000pcs/hour |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g |
| Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 135kg/ hour | 225kg / hour |
| Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour | 0.5ton / hour | 0.6ton / hour |
| Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h | 60cbm/h | 80cbm/h |
| Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 8-10workers |
| Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW | 70KW | 100KW |
| With dryer | 30KW | 45KW | 60KW | 65KW | 80KW | 150KW |
| Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² | More than 200 M² | More than 250 M² |
| With dryer | More than200 M² | More than 240 M² | More than300M² | More than 320 M² | More than 400M² | More than 520M² |
| Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*1+20ft*1 | 40ft*2+20ft*1 | 40ft*2+20ft*1 | 40ft*3 | 40ft*3+20ft*1 | 40ft*5 |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | About 45 working days after receiving the deposit. |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment | When the deposit is paid, the machine will begin to be produced.
And the balance should be paid by the consignee (the buyer) before
the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Certification | CE |
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELL
Factory Introduction
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing
machinery company which has a good mix of science, industry and
trade.
It has been devoting to studying, developing, and manufacturing of
packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and
abroad, and has studied and developed ZSJ series paper pulp molding
plant, YS series paper carton automatic print fluting machine, BD
series thin cutter paper slitter and paper carton series cutter
chain.
These products are sold to many countries and areas, such as
Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria,
Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of
your company.
Welcome to contact us.

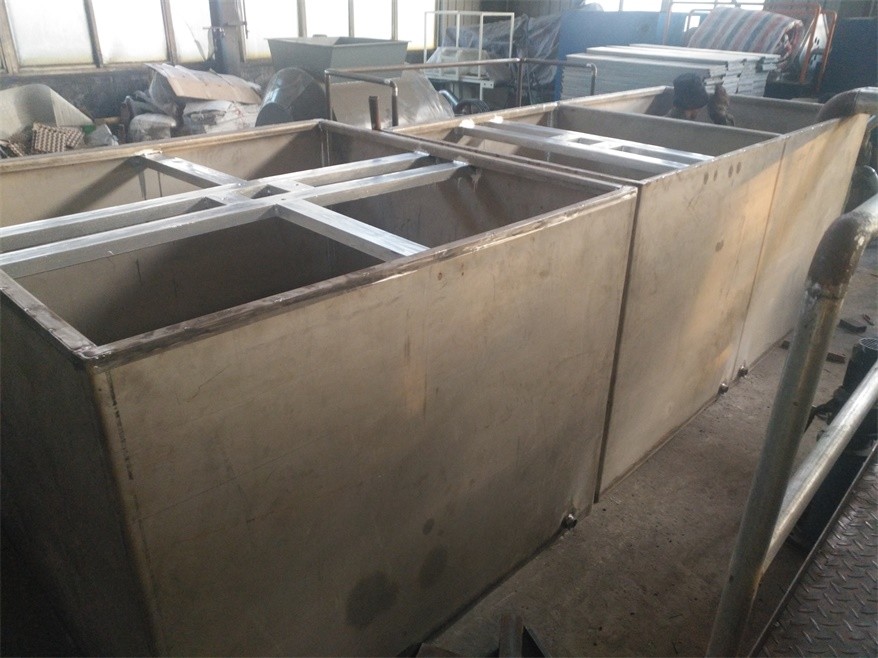

Stainless steel water pool and pulp pool
