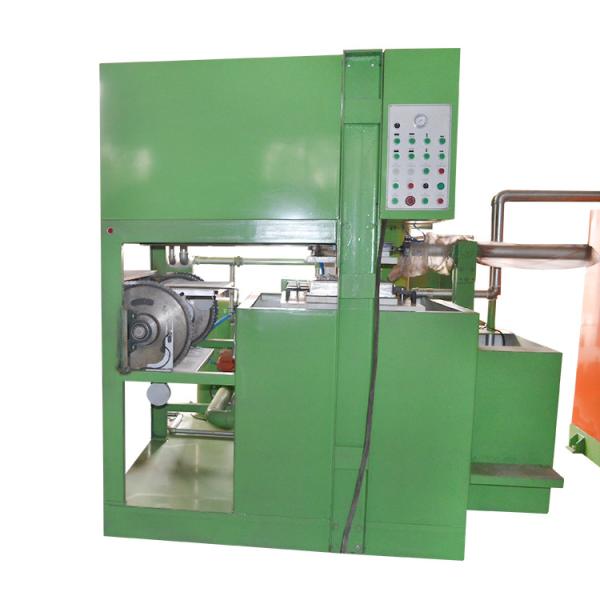

Semi Automatic Paper Egg Tray Machine / Eco-friendly Egg Tray /
Carton Making Machine
Semi Automatic Paper Egg Tray Machine / Eco-friendly Egg Tray /
Carton Making Machine
This type machine uses waste paper as raw material to produce the
egg trays for chicken farm factory or other customer who needs the
trays. It has 2 types forming method: one is Reciprocating Type,
the other is Rotary Type Egg Tray Making Machine. It can make many
simple shape and large quantity demand egg trays, apple trays, egg
cartons, egg boxes, wine trays, shoe trays, etc..using waste paper
as raw materia
It is composed of following parts:
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water
will mix in hydrapulper ,then go to the refiner machine ,refiner
machine make the pulp more small and uniform ,then the pulp pump
absorb the pulp to the pulp pool .after the second mix in the pulp
pool ,the pulp will go to the form machine pulp tank .
2. Forming System :
The vacuum pump will offer the vacuum to make the forming mould
absorb the pulp from the pulp tank. One PLC cabinet will control
the pulp absorb time ,the finished product will be shaped on the
forming mould ,then the transfer mould transfer the products to the
drying line ,the air compressor will give the air to blow the
products ,then the products will drop down from the mould .Then the
products is delivered to the drying line automatically; the water
will go back to the water pool recycled.
All the machine is in computer control, which is also very easy to operate and donnot
need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space.
it is quitely used by small medium enterprises.
Our machine can turn your waste paper and books into Money!
Our machine can produce Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg
and etc) ,Fruit tray (for apple,tomato, pear and etc) ,Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays,some medical-care products and fixed shape(the design doesn't change
frequently) pulp molding products with large quantity.
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -1300pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
Machine Technical Parameters
| Model | Mechanization | Working mode | Capacity(Pcs/h) |
| ZJM-350 | Semi-auto or Automatic | Reciprocating | 350-400 |
| ZJM-700 | Semi- auto or Automatic | Reciprocating | 700-800 |
| ZJM-1000 | Semi- auto or Automatic | Reciprocating | 1000 |
| ZJM-1300 | Semi - auto or Automatic | Reciprocating | 1300-1500 |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | About 30 working days after receiving the deposit. |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment | When the deposit is paid, the machine will begin to be produced.
And the balance should be paid by the consignee (the buyer) before
the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Certification | CE |
Our Machine Advantages:
1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after
connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by
using different moulds
5. Besides egg tray, fruit trays, our machine also can produce
industrial package
6. All installation and debugging work will be done before
shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time
Factory Introduction
Jinan Runliang Packing Machinery Co.,Ltd is a famous packing
machinery company which has a good mix of science, industry and
trade.
It has been devoting to studying, developing, and manufacturing of
packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and
abroad, and has studied and developed ZSJ series paper pulp molding
plant, YS series paper carton automatic print fluting machine, BD
series thin cutter paper slitter and paper carton series cutter
chain.
These products are sold to many countries and areas, such as
Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria,
Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of
your company.
Welcome to contact us.

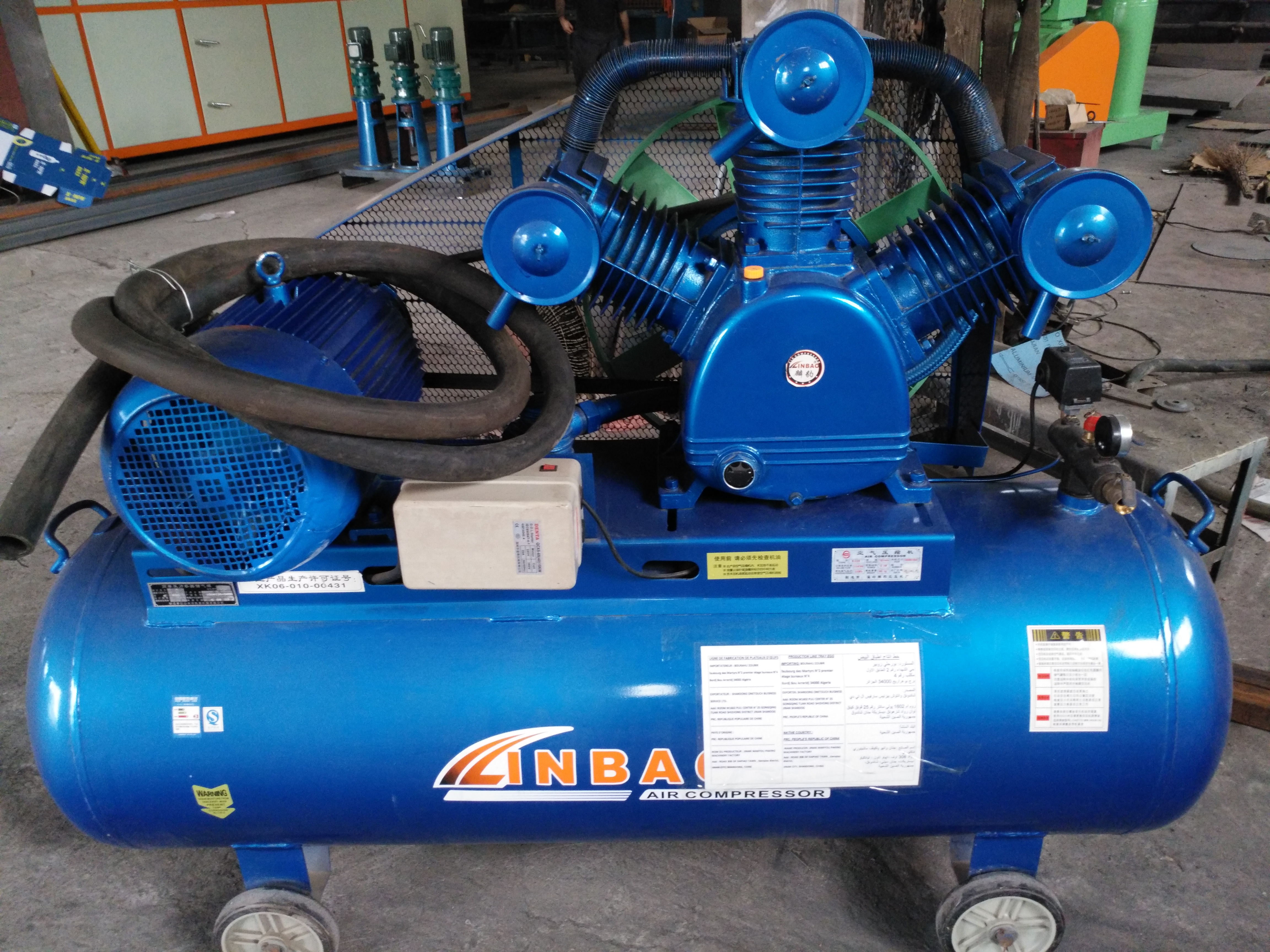

China Famous Brand Air Compressor
