Waste Paper Automatic and Full Automatic Egg Tray Machine Compact
Structure Easy Operate Various Model Paper Tray
The Paper Egg Tray Machine production line is mainly combined by
THREE PARTS:
1. Paper Egg Tray Machine Pulping system: Use waste paper and water
as raw material and pulp up;

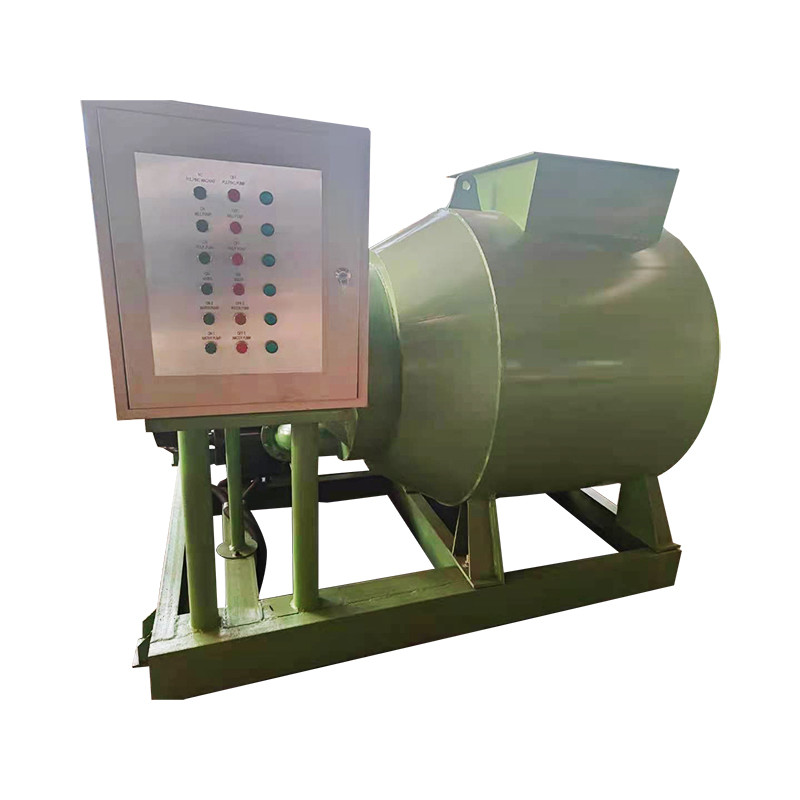

A. Put the raw material and water into the hydraulic pulper, you
will get the paper pulp after mixed 10-20 minutes.
B. Pulp pump will transfer the finished paper pulp into the slurry
pool.
C. The pulp pond beater will mix the pulp concentration.
D. The pulp pump will transfer the pulp into forming machine.
2. Paper Egg Tray Machine Forming system: The pulped material being delivered to paper
product egg Tray molds, and forming to the Product paper Tray plate
shape;
A. The molding machine is to absorb the pulp to the molding area of
egg tray machine, absorb the pulp to the molding mold through the
suction of the vacuum system, and absorb the excess water into the
gas-water separation tank, and then pump the water to the tank for
storage.
B. The molding mold absorbs the pulp and then forms it. and then
the transfer mold takes out the finished product and sends it to
the drying tray inside the dryer oven.
Paper egg tray machine forming molds can be changed as per buyer's
different product requirement.
3. Paper Egg Tray Machine Drying system: The formed Product Tray plate being delivered to
Dryer, and come up to Completed Strong Product Tray plate. The egg
tray machine drying system can be sun drying type, brick kiln
drying type and metallic type. It is up to buyer's choice and
budget.
The drying system boiler can use natural gas, diesel, LPG, coal or wood, electricity as energy. Customers must first confirm which kind of energy they
will use before our production.
If the output of pulp tray is less than 1000 pieces per hour, and
the weather is good enough, we recommend the manual operation type
forming machine and sunshine drying mode, this can reduce the cost
of equipment investment.
If the weather is not enough to dry the paper trays easily, or the
output of the machine is more than 1000 pcs/h, we recommend the
automatic drying system,ie. metallic dryer.
paper egg tray machine metallic dryer

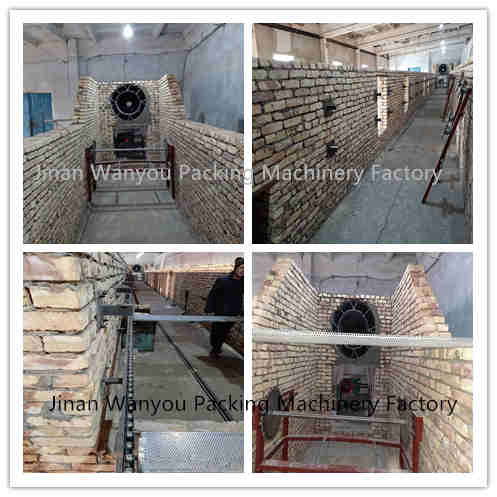

paper egg tray machine brick kiln dryer
Paper egg tray machine sun drying type

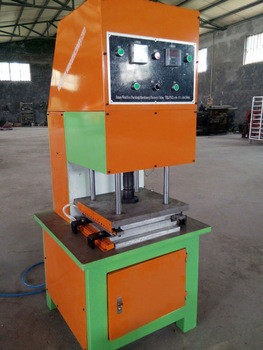

A hot pressing section should be added in the production of pulp
molded egg
box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and
cup carrier after drying because of shrinking.
The egg box/carton can be labelled or printed after hot pressing.
These processes could be finsihed manually or automatically.
We have variety capacity egg tray machines from 350pcs/h to
6000pcs/h. We are OEM factory, we can manufacture the egg tray
machine as per your requirement.
All the egg tray machine is in computer control, which is also very easy to operate and donnot
need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space.
it is quitely used by small medium enterprises.
Our egg tray machine can turn your waste paper and books into
Money!
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg,
15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and
2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't
change frequently) pulp molding products with large quantity.
Technical data of 700pcs/h capacity egg tray machine
| Egg Tray mould quantity | 2pcs |
| Raw material | Waste paper |
| Output for egg tray | 700pcs/hour |
| Net weight per piece (gram) | 70g-75g |
| The volume of waste paper consumed | 0.06ton / hour |
| The volume of water consumed | 0.1ton / hour |
| The natural gas consumption of the dryer(about) | 25cbm/h |
| Machine Weight | 10-20tons |
| Egg tray Size | 295mm*295mm 30eggs |
Paper Egg Tray Machine Model
| Egg Tray Mold Quantity | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) | 40(5pcs*8) | 48(6pcs*8) |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper |
| Egg tray Capacity(pcs/hour) | 700 | 1000 | 1300-1500 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 |
| Waste paper consumption | 0.06ton / h | 0.1ton / h | 0.13ton / h | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour | 375kg/h | 450kg/h |
| Water Consumption | 0.15ton/h | 0.22ton / h | 0.3ton / h | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h | 1.1t/h | 1.35ton/h |
| Natural Gas Consumption of Dryer | 25cbm/h | 45cbm/h | 60cbm/h | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h | 150cbm/h | 180cbm/h |
| Boiler model (natural gas fuel Kcal) | 300*103 | 450* | 600*103 | 800*103 | 1000*103 | 1200*103 | 1500*103 | 1800*103 | 2000*103 |
| Worker requirement | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 5-7workers | 8-10workers | 8-10workers | 10-12 | 10-12 |
| Power Requirement | Without dryer | 30KW | 40KW | 45KW | 70KW | 80KW | 100KW | 100KW | | |
| With dryer | 45KW | 60KW | 65KW | 100KW | 120KW | 130KW | 150KW | 180kw | 200kw |
| Area of workshop | Without dryer | More than 100 M² | More than 120 M² | More than 150 M² | More than
200 M² | More than 200 M² | More than 250 M² | More than 250 M² | | |
| With dryer | More than 240M²
dryer-16M | More than300M²
Dryer-16M | More than 320 M²
dryer-18M | More than 400M²
Dryer18M | More than 400M²
Dryer20M | More than 520M² dryer30M | More than 520M²
Dryer32M | 600m2
Dryer 36m | 750m2
Dryer 40m |
| Container Requirement | Without dryer | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | | |
| With dryer | 40ft*2+20ft*1 | 40ft*3 | 40ft*3 | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | 40ft*6+20ft*1 | 40ft*7 |
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size
300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted
according to actual size of client's plant.
3. The above specification is for reference only, due to continuous
technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able
to provide customized solution according to specific requirements
from customer.
5. Welcome to contact us anytime, our professional team will
provide more effective help and supports for you. |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment | When the deposit is paid, the egg tray machine will begin to be
produced. And the balance should be paid by the consignee (the
buyer) before the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | plastic film, naked package In container |
Factory Introduction
Jinan Wanyou Packing Machinery Factory is a famous packing
machinery company which has a good mix of science, industry and
trade.
It has been devoting to studying, developing, and manufacturing of
packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and
abroad, and has studied and developed ZSJ series paper pulp molding
plant, YS series paper carton automatic print fluting machine, BD
series thin cutter paper slitter and paper carton series cutter
chain.
These products are sold to many countries and areas, such as
Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria,
Taiwan and so on.
FAQ
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4
paper, corrugated cartons, paperboard etc.
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
All paperpackage such as paper egg tray, egg carton,egg box, fruit
tray, bottle tray, cup tray, consumer product package, medical
disposable container etc.
(4). Are you a manufacturer or a trading company?
Yes, our company has been fabricating pulp molding machine since
2000. We are one of the
most important pulp molding machine maufacturers in the world, and
we are famous pulp
molding machine manufacturer in China, providing high quality and
production capacity pulp molding
machinery at reasonable prices to the world.
(5). How to contact you?
(A) Visit us.Our head office is in Building 5-407, Xinyuanxin
International Business Center, Huaxin
Road, Licheng District, Jinan City, Shandong Province, P.R. China.
The nearest airport is Jinan International Airport.
(B) Send email to tell us your requirments.
(C) Contact us at Whatsapp/Wechat: +86-15665703348
Welcome to contact us!
