Egg Tray Making Machine / Competitive New Model Egg Tray Machine / Fruit Tray Machine

Egg Tray Making Machine / Competitive New Model Egg Tray Machine / Fruit Tray Machine

Machine Introduction:

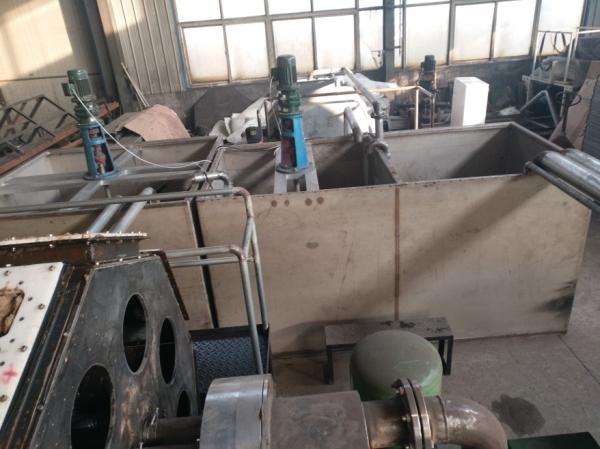

1. Pulping System:

Pulper, 1.0M3,15kw;

vibration screen, 0.9M2,3kw;

mixer; pulp pump;water pump,control cabinet for pulping system,etc

2. Forming System : Consist of 1pc of forming platen and 1 pc of transfering platen. Equipped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.

3. Drying system (can use gas,dissel,coal for Boiler burner)

Single layer conveying chain;heated by section;multi burners;

Six layers drying line, energy saving and saving place

The temperature of each section can be adjusted independently;burners with French or Italian brand;

The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.

4. Automatic counting:

Stacker one set, one automatic counting device on the stacker

With this machine production line, investors can turn their waste paper into Money!

Condition: New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: Wanyou

Voltage: 220-440V

Power(W): Different Machine Model

Weight: Depends

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided: Engineers available to service machinery overseas

Capacity: 350- 3000pcs/h

Color: As customer needs

Frequency: 50Hz-60Hz

Application: egg tray,fruit tray,bottle tray

Workshop required: 400㎡

Worker required: 5-6 persons

Fuel: Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine

This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.

Technical parameters

Payment and delivery

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.

Don’t miss the chance of promoting the production efficiency of your company.

Welcome to contact us.

Welcome to contact us!

  Jinan Wanyou Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.Our factory established in 2008, locates in Jinan City, Shandong Province, China.

We are professional manufacturer and supplier for Paper Egg Tray Machine, with more than10 years' experience in the machine design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national paper egg tray machine manufacturing license in China.

We have been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.we control the quality of the products strictly.

We absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant,

.

Our products have passed the CE certification. Now we are producing different output paper egg tray,paper fruit tray,paper bottle tray and other industrial package trays exported to over 50 countries,such as Algeria,Tunisia,Argentina,Vietnam,Russia, Uzbekistan,Nigeria,Taiwan and so on.

Now, we offer products are as below:

Various paper egg tray production lines/pulp moulding machine: such as paper egg tray machine,paper egg box machine,paper fruit tray production line,pulp molding industrial package machinery, pulp molding pallet equipment.We also provide various aluminium mould/tooling for above products.

What we did and what we are doing is to offer the best egg tray production line, to turning waste into treasure contribute to the development of the environmental protection. We sincerely hope that we can establish long term and friendly business relationship with you.
