Paper Egg Tray / Apple Tray Making Machine Semi - Automatic
Computer Controlled
Paper Egg Tray Production Line 2 Years Warranty Egg Plate Egg Tray
Apple Tray Machine is a whole egg tray making production line. It
mainly has following working process: pulping system, forming system and drying system and packing
system.
Also some assistant equipments are needed, such as air compressor and electrical controller, Vacuum pump, boiler,
burner, crusher, valves, etc.
Pluping system is in charge of mixing the waste paper and water.
When it reaches the certain concentration, the waste paper pulp can
be conveyed to forming machine, here it forms a paper egg tray.
Then the egg tray paper needs to be dried because the paper egg
tray has some water after forming. After this proces, you can pack
the paper egg tray manually or automatically.
Our Paper Egg Tray Machine saves production cost, and saves space.
it is quitely used by small medium enterprises.
And this machine has following features:
1. capacity 350-6000 pcs per hour
2. use waste paper as raw materials
3. machine including making pulp unit ,molding unit
4. computer control
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Voltage: 220-440V
Power(W): 28kw~50kw
Dimension(L*W*H): 2300mm*1950mm*1600mm
Weight: 4 tons-20tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -1300 pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 50-180㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Semi-auto and fully automatic
Keyword: Egg tray machine
Our machine is:
1. controlled by computer, no needs any basic construction.
2. We could make all kinds of moulds for you, and it's very easy
to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from
Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg,
15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and
2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't
change frequently) pulp molding products with large quantity.
Technical data of egg tray production line:
| Model | Forming Machine | Capacity | Drying system | Workshop Area | Rated power |
| RL-350 | 1 mold 1 face Reciprocating type | 350pcs/h | 4 layer metal dryer | 200m2 | 30kw |
| RL-700 | 2 molds 2 face Reciprocating type | 700pcs/h | 4 layer metal dryer | 240m2 | 45KW |
| RL-1000 | 3 molds 3 faces Reciprocating type | 1000pcs/h | 4 layer metal dryer | 300m2 | 60KW |
| RL-1300 | 4 molds 4 faces Reciprocating type | 1300pcs/h | 4 layer metal dryer | 320m2 | 65KW |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | About 25 working days after receiving the deposit. |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE. |
| Time of payment | When the deposit is paid, the machine will begin to be produced.
And the balance should be paid by the consignee (the buyer) before
the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Certification | CE |
Our machine can provide customer 2 years warranty, which no other
factory can supply.
Our machine has sold out to many countries like India, South
Africa, Mali, Nigeria, Alegria, Phillippines, Vietnam, Indonesia,
Turkmenistan, Uzbekistan, Tunisia, etc. And we got good reputations
from our customers abroad.

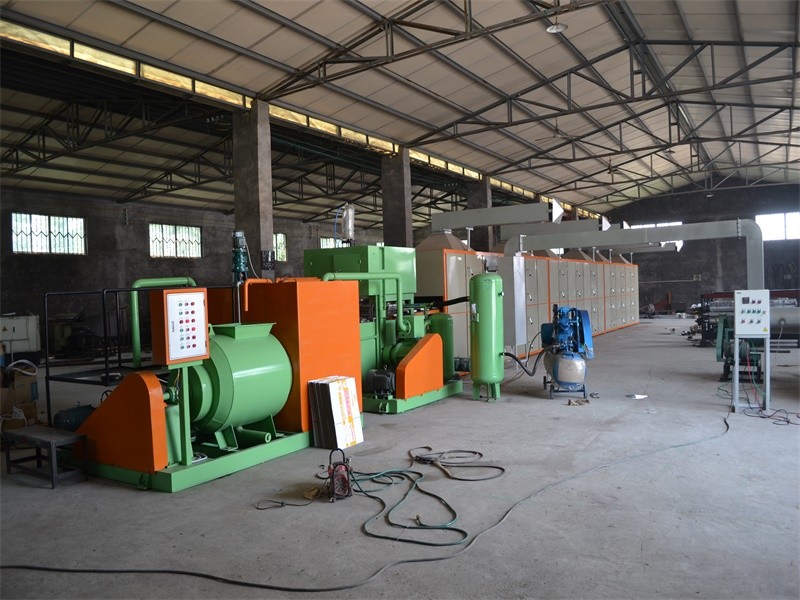

Machine Production line in our factory
